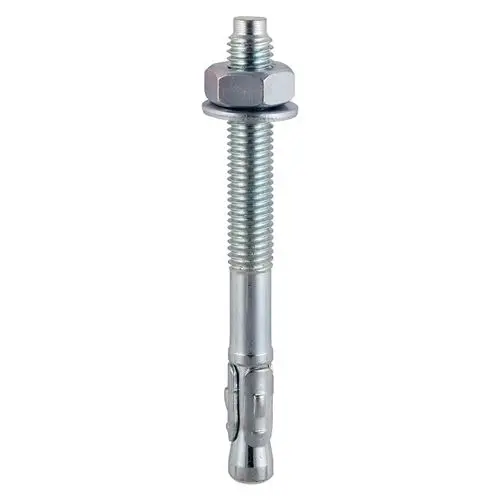

Timco M16 x 175mm Zinc Plated Throughbolts (Pack of 15)
Zinc-plated throughbolts for concrete anchoring. M16 x 175mm, cold-formed steel, torque-controlled. Pack of 15.
The Timco Throughbolts are high-quality, torque-controlled through fixings designed for robust anchoring applications in concrete. These zinc-plated bolts feature a chamfered head design to protect the thread during installation, ensuring quick and damage-free fitting. Manufactured from cold-formed carbon steel (grade 5.8), they offer superior strength and durability for heavy-duty use.
Each bolt comes with a hex full nut and washer, providing a secure and stable connection. The special expansion clip enables rapid installation, making these throughbolts ideal for time-sensitive projects. For installations without a torque wrench, simply tighten the nut 3 to 4 full turns from finger tight for optimal performance.
Specifications
- Thread Diameter: M16
- Length: 175mm
- Nut Socket Size: 24mm
- Material: Cold-formed carbon steel (grade 5.8)
- Finish: Zinc plated and passivated (3-5 microns)
- Drill Hole Diameter: 16.0mm
- Fixture Hole Diameter: 18.0mm
- Edge Distance: 100mm
- Maximum Fixture Thickness: 70mm
- Minimum Drill Hole Depth: 75mm
Suitable for a variety of anchoring applications, these throughbolts provide a reliable and efficient solution for securing fixtures in concrete.
- Thread Dia. mm: M16
- Length mm: 175
- Nut Socket Size mm: 24
- Material: Carbon Steel (Grade 5.8)
- Finish: Zinc Plated (3-5 microns)
- Drill Hole Dia. mm: 16.0
- Fixture Hole Diameter mm: 18.0
- Edge Distance mm: 100
- Max Fixture Thickness mm: 70
- Min Drill Hole Depth mm: 75
Always follow local regulations and product guidance.
