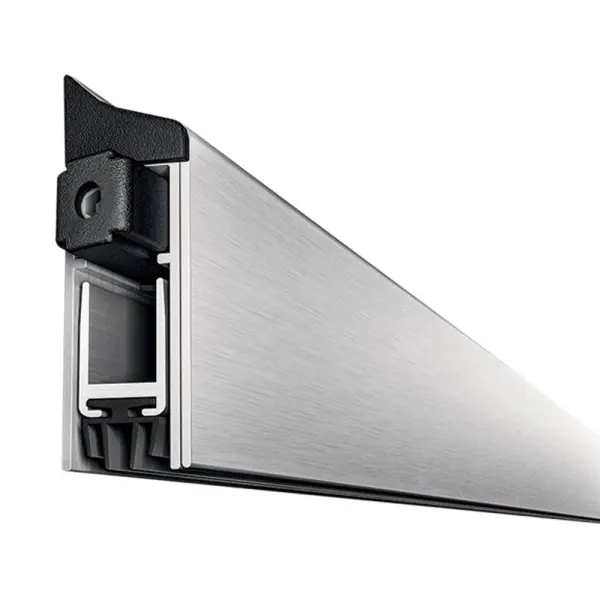

Timco Applique Drop Down Seal, 1030 x 40mm, Fire-Rated

The Timco Applique Drop Down Seal is an innovative door seal that activates automatically when the door is closed, dropping down to form a tight seal without the need for high fixed thresholds. This leaves the door threshold clear and flat, making it perfect for accessibility and energy efficiency compliance.

Designed to create an effective barrier against external elements, this seal provides protection from climate conditions, noise, light, fire, smoke, and insects. It is a cost-effective solution for meeting Part E and Part M of the UK Building Regulations, which cover accessibility for disabled users and energy conservation standards.

Features:

• Surface-mounted design – Easily retrofitted to timber door sets.
• Screw-fixed installation – Includes all necessary screws.
• Flexible positioning – Can be fitted either on the inside (lock side) using an included bumper or the outside (non-lock side).
• Automatic operation – Seal drops on the hinge side before the lock side.
• Durable construction – Features galvanised steel flat springs and reinforced actuators for long-lasting performance.
• High-performance seal – Made from 4-fin high-quality 'V' zero-class PVC rubber, which is self-extinguishing.
• Maximum drop of 14mm – Ensures a tight seal across the door threshold.

Testing & Compliance:

• Acoustic rating – Achieves up to 37dB Rw (BS EN ISO 140-3: 1995).
• Fire resistance – Tested to BS476: Part 20/22: 1987 for 60 minutes.
• Smoke resistance – Certified under BS EN 1634-3: 2004.

Dimensions:

• 1030mm x 40mm x 13mm (LxWxH).

Ideal for commercial, public, and residential doors needing fire, smoke, noise, and draught protection while maintaining accessibility.
